Options Option 4

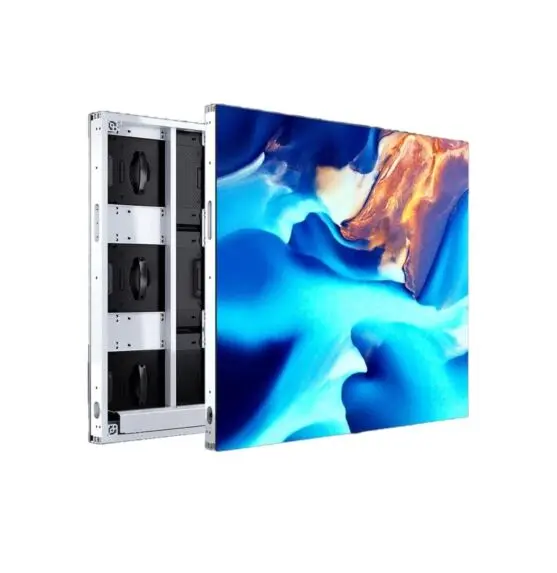

Product Series E28
Pixel Pitch (mm) 2.9
Pixel Configuration SMD1415
Display Size (HxW mm) 1750x2500 (5.7'x8.2')
Display Resolution (HxW pixels) 588x840
Module Size (HxW mm) 250x250
Module Dots (HxW pixels) 84x84
Module Qty (HxW pcs) 7x10
Cabinet Size (HxW mm) 1000x500, 750x500
Cabinet Dots (HxW pixels) 336x168, 252x168
Cabinet Qty (HxW pcs) 1x5, 1x5
Material of Cabinet Aluminum Profile
Cabinet Weight (Kg) 16, 12.5
Drive Mode Constant Current Drive
Viewing Angle 140/120
Brightness Max (cd/sqm) 5,500
Max Power (Watt/sqm) 520
Average Power (Watt/sqm) 173
Ingress Protection IP65
Maintenance Front & Back
Controller NovaStar TB30
System Synchronous & Asynchronous
Communication Ethernet
Input Video Source HDMI
Refresh Rate 3840Hz
Frame Rate >60Hz
Signal Backup Yes
Color Gray 16 bit per color
System Platform Windows 2000 or Higher
Electrical Specifications
Power Required 100-240VAC, 45~66HZ
Ambient Temp. -20℃~+60℃
Ambient Humidity 10%~90%RH
Rate of Control Deviation Whole screen ≤1/10000
Nominal LED Work Life 100000 Hours
Accessories
Software Yes
Power & Data Cable Yes
Free Spare Parts 5%
