Input: 100-240V AC 50/60Hz 16A (max)
Output: 100-240V AC 50/60Hz 11.9 A/100V or 14.3 A/240V(max)
Power Consumption: 408W (max)/136W(avr)

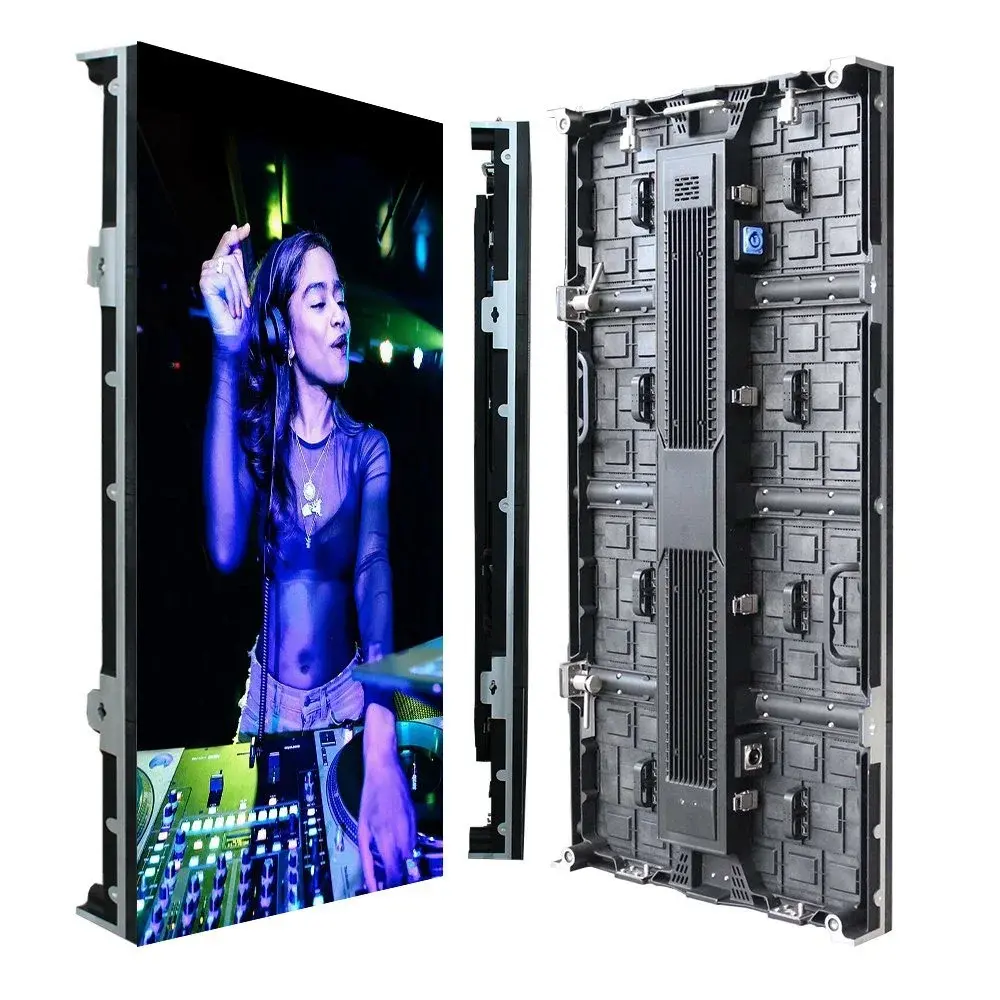

LED Display
Made In China

Options Option 4
Product Series E28
Pixel Pitch (mm) 2.9
Pixel Configuration SMD1415
Display Size (HxW mm) 1750x2500 (5.7'x8.2')
Display Resolution (HxW pixels) 588x840
Module Size (HxW mm) 250x250
Module Dots (HxW pixels) 84x84
Module Qty (HxW pcs) 7x10
Cabinet Size (HxW mm) 1000x500, 750x500
Cabinet Dots (HxW pixels) 336x168, 252x168
Cabinet Qty (HxW pcs) 1x5, 1x5
Material of Cabinet Aluminum Profile
Cabinet Weight (Kg) 16, 12.5
Drive Mode Constant Current Drive
Viewing Angle 140/120
Brightness Max (cd/sqm) 5,500
Max Power (Watt/sqm) 520
Average Power (Watt/sqm) 173
Ingress Protection IP65
Maintenance Front & Back

Controller NovaStar TB30
System Synchronous & Asynchronous
Communication Ethernet
Input Video Source HDMI
Refresh Rate 3840Hz
Frame Rate >60Hz
Signal Backup Yes
Color Gray 16 bit per color
System Platform Windows 2000 or Higher

Electrical Specifications

Power Required 100-240VAC, 45~66HZ
Ambient Temp. -20℃~+60℃
Ambient Humidity 10%~90%RH
Rate of Control Deviation Whole screen ≤1/10000
Nominal LED Work Life 100000 Hours

Accessories

Software Yes
Power & Data Cable Yes

Free Spare Parts 5%

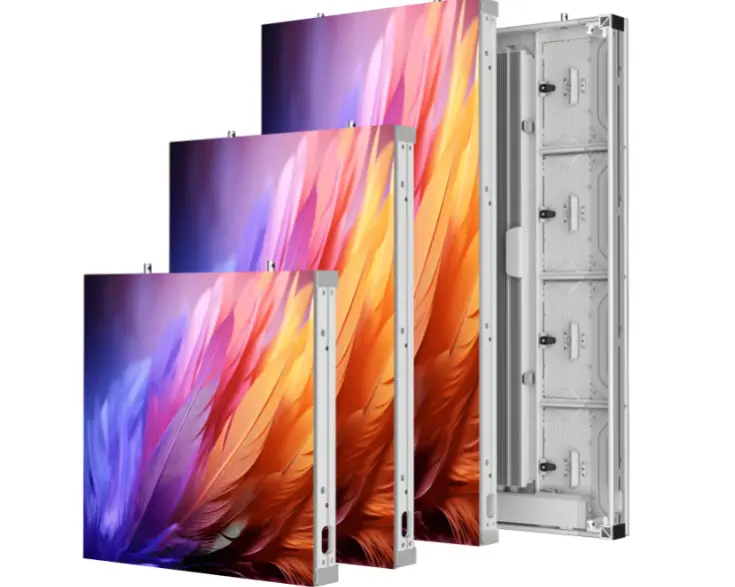

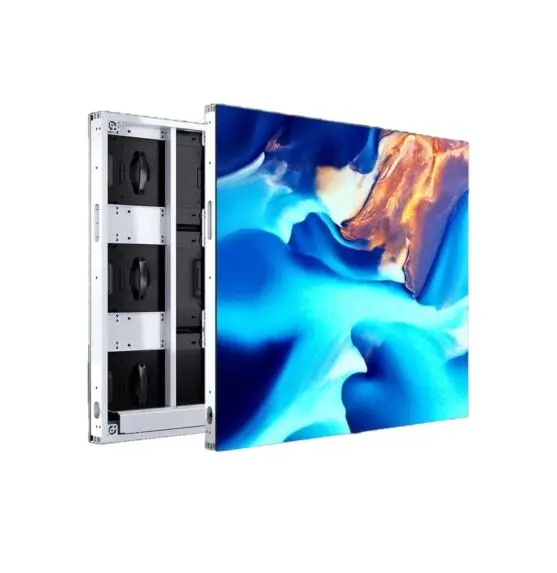

Options Option 1
Product Series E28
Pixel Pitch (mm) 3.9
Pixel Configuration SMD1921
Display Size (HxW mm) 3000x1500 (9.8'x4.9')
Display Resolution (HxW pixels) 768x384
Module Size (HxW mm) 250x250
Module Dots (HxW pixels) 64x64
Module Qty (HxW pcs)a 12x6
Cabinet Size (HxW mm) 1000x500
Cabinet Dots (HxW pixels) 256x128
Cabinet Qty (HxW pcs) 3x3
Material of Cabinet Aluminum Profile
Cabinet Weight (Kg) 16
Drive Mode Constant Current Drive
Viewing Angle 140/120
Brightness Max (cd/sqm) 6,000
Max Power (Watt/sqm) 540
Average Power (Watt/sqm) 180
Ingress Protection IP65
Maintenance Front & Back

Controller NovaStar TB60
System Synchronous & Asynchronous
Communication Ethernet
Input Video Source HDMI
Refresh Rate 3840Hz
Frame Rate >60Hz
Signal Backup Yes
Color Gray 16 bit per color
System Platform Windows 2000 or Higher

Electrical Specifications

Power Required 100-240VAC, 45~66HZ
Ambient Temp. -20℃~+60℃
Ambient Humidity 10%~90%RH
Rate of Control Deviation Whole screen ≤1/10000
Nominal LED Work Life 100000 Hours

Accessories

Software Yes
Power & Data Cable Yes

Free Spare Parts 5%

Product Series Y53
Pixel Pitch (mm) 4
Pixel Configuration SMD1921
Display Size (HxW mm) 2880x1440 (9.4'x4.7')
Display Resolution (HxW pixels) 720x360
Module Size (HxW mm) 320x480
Module Dots (HxW pixels) 80x120
Module Qty (HxW pcs) 9x3
Cabinet Size (HxW mm) 960x960, 320x480
Cabinet Dots (HxW pixels) 240x240, 80x120
Cabinet Qty (HxW pcs) 3x1, 9x1
Material of Cabinet Aluminum Profile
Cabinet Weight (Kg) 20.5, 5.5
Drive Mode Constant Current Drive
Viewing Angle 140/120
Brightness Max (cd/sqm) 5,500
Max Power (Watt/sqm) 520
Average Power (Watt/sqm) 173
Ingress Protection IP65
Maintenance Front & Back


Controller NovaStar TB60
System Synchronous & Asynchronous
Communication Ethernet
Input Video Source HDMI
Refresh Rate 3840Hz
Frame Rate >60Hz
Signal Backup Yes
Color Gray 16 bit per color
System Platform Windows 2000 or Higher

Electrical Specifications

Power Required 100-240VAC, 45~66HZ
Ambient Temp. -20℃~+60℃
Ambient Humidity 10%~90%RH
Rate of Control Deviation Whole screen ≤1/10000
Nominal LED Work Life 100000 Hours

Accessories

Software Yes
Power & Data Cable Yes

Free Spare Parts 5%
